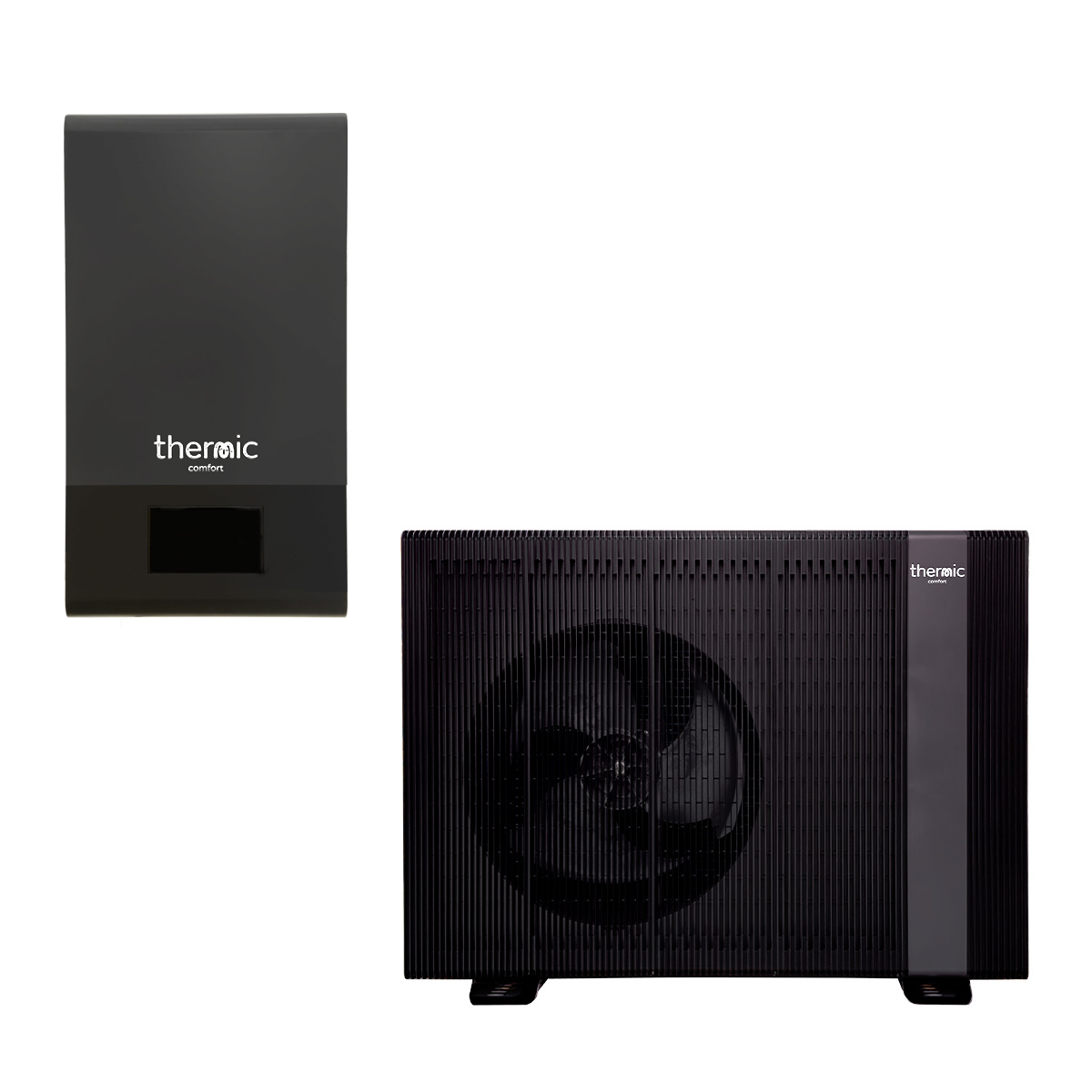

Elda HS
Wall-mounted indoor heat pump unit
Featuring R290 refrigerant, A+++ energy efficiency, and dual-unit design
- Compatible with Elda 60 | 90 | 130
- Thermal output: 1.5 to 18.5 kW
- Quiet operation
- Easy remote control and management
Why choose Thermic Comfort?
Refined Aesthetic Design
With a sophisticated matte black finish and clean lines.
SCOP of 5.0
A SCOP of up to 5.0 ensures high-quality performance and sustainability.
Built-in Wifi
All our Elda Series units include Wi-Fi connectivity.
Natural Refrigerant
“Green” refrigerant R290, environmentally friendly with a very low GWP.
Water Temperature up
to 75°C
The water temperature can be adjusted in the heat pump from 30°C to 75°C.
High Efficiency A+++
The Elda Series meets the highest energy efficiency rating: A+++.
Elda HS: Technology that blends with your home

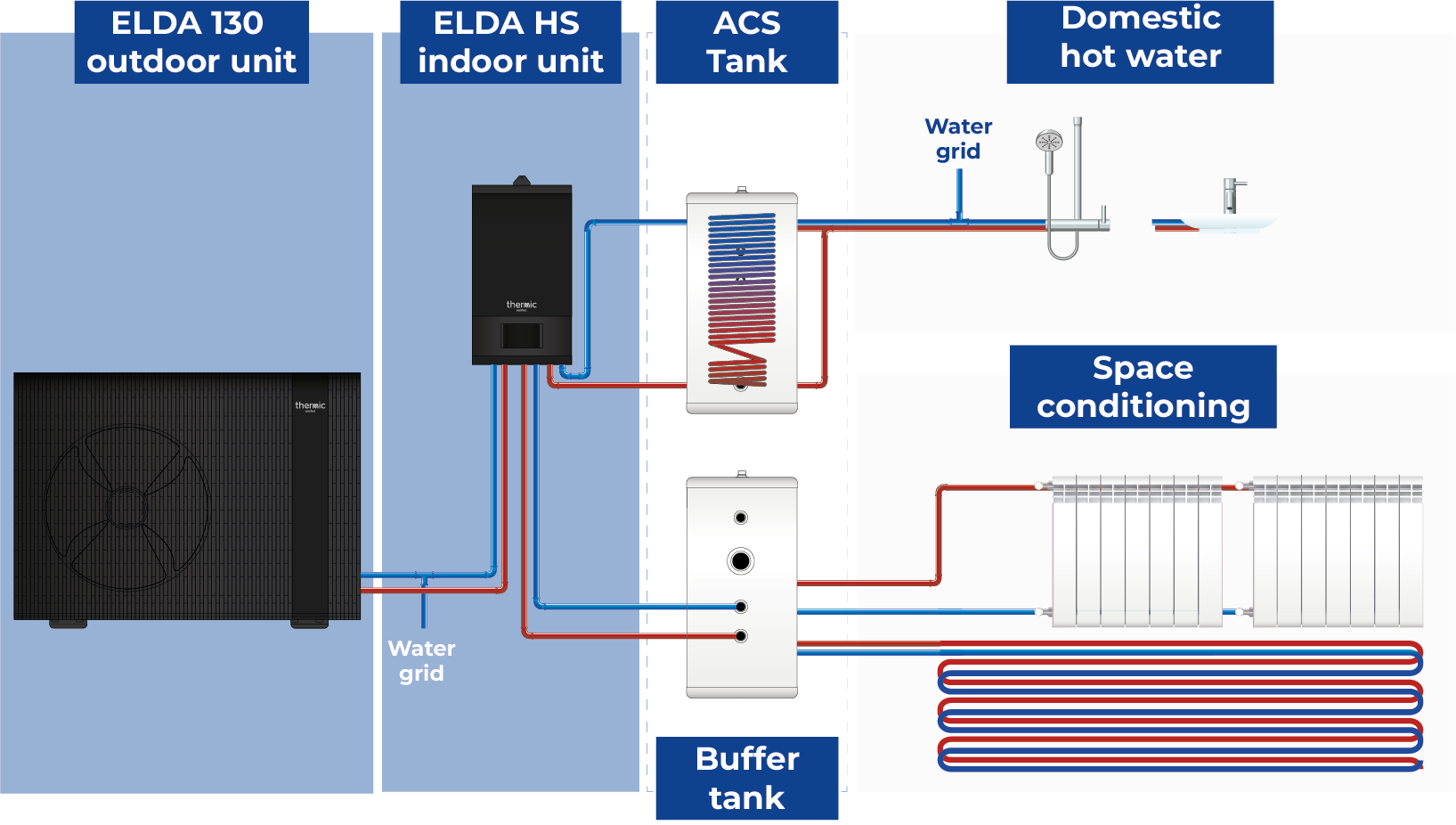

The indoor unit receives hot fluid from the outdoor unit to raise the water temperature for use in radiator systems. This hydraulic module includes a heat exchanger that transfers heating and cooling energy through different equipment circuits, providing overall thermal system control.
All energy processing occurs in the outdoor unit. This fully automatic method delivers exceptional efficiency. These systems contain no burner or combustion chamber, eliminating toxic residues.
This climate control solution delivers high performance by generating more energy than it consumes. This translates to an outstanding COP (Coefficient of Performance): For every 1 kW consumed, 4-5 kW are produced. This efficiency makes it a versatile product adaptable to all home types. Its flexible modulation range ensures compatibility with any installation.
Considering a heating system upgrade? Aerothermal energy is the ideal choice: efficient, sustainable, and undoubtedly the way forward.

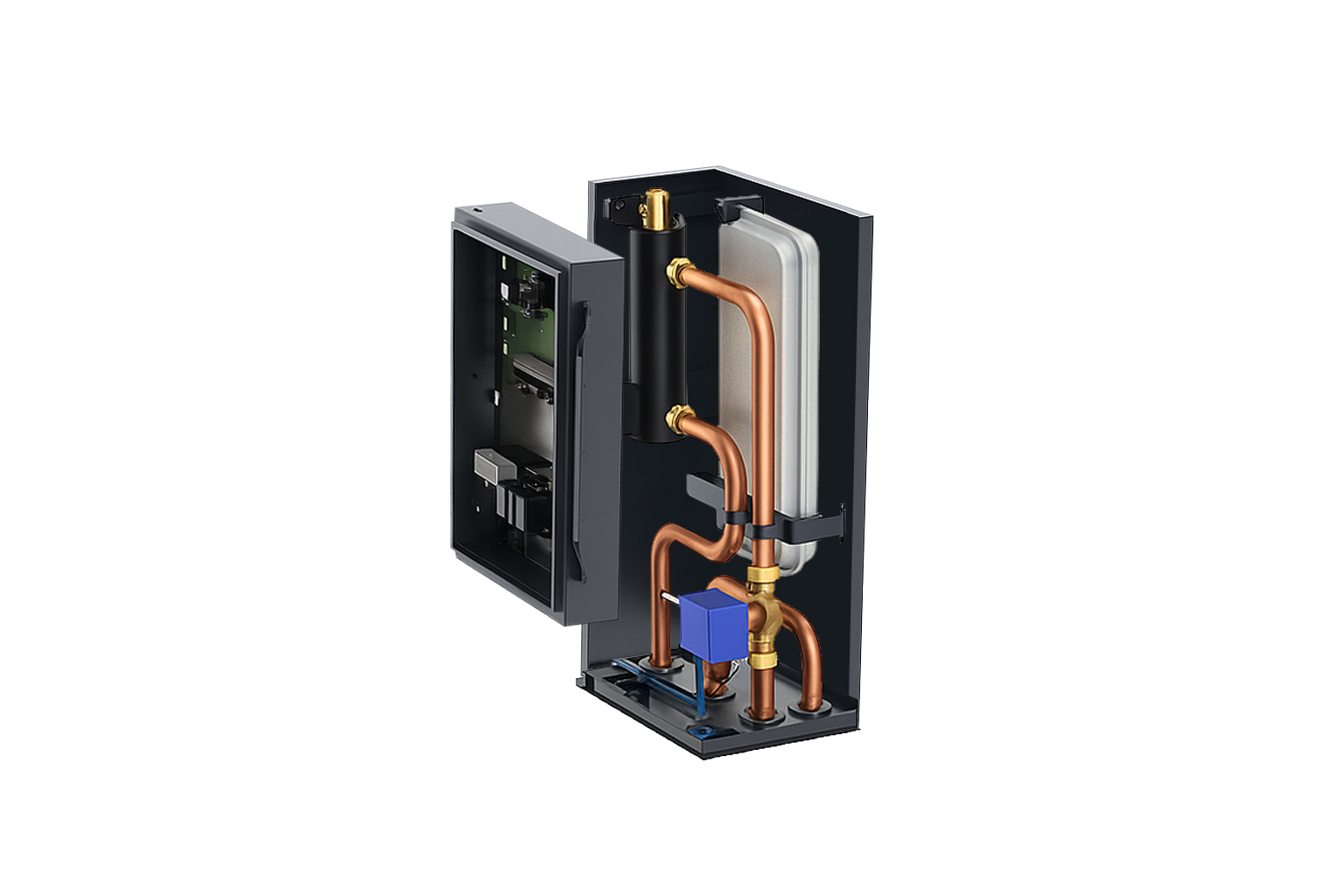

Components of ELDA HS
Material selection follows strict durability, energy efficiency, and thermal resistance standards, combining hydraulic, thermal, and control components in an optimized structure.
System components include:
Plate heat exchanger
Transfers heat between two hydraulic circuits without mixing them
Solenoid valve
Automatically controls water flow based on electronic signals
Copper piping
Routes water between valves, heat exchanger, and external connections
Electronic board, relays & connectors
Manages sensors, valves, temperature, and communication with the main system
Air vent valve (Air purger)
Removes trapped air from the hydraulic circuit
Individual multi-zone control
The entire thermal generation process – in both heat pumps (outdoor units) and the HS wall-mounted indoor unit – is monitored and controlled via measurement sensors. Elda HS connects using only water piping. With no refrigerant lines required, it's the safest home solution.
The R290-equipped Elda HS controls temperatures in separate zones via independent heating circuits. The mixer valve kit enables customized temperatures in different zones.
Product details
| Water tank capacity | - |
| Maximum water outlet temperature | 75℃ |
| Voltage and frequency | 220/240 ~/ 50Hz |
| Sound level | 30 dB(A) |
| Dimensions (LxWxH) | 418 x 310 x 750 mm |
| Location | Indoor unit |
